PNEUMATIC TOOLS-IMPACT WRENCH

10mm Reversible Pistol Grip Drill

B2834

Use for drilling and screwdriving. Two speed trigger (slow speed when pushed halfway). Directional lever accessible from both sides for left/right handed use. 10mm (3/8”) chuck included. Planetary gears for longer life and smoother running.

Ergonomic comfortable grip.

Chuck size: 3/8” (10mm). Free speed: 1,800rpm.

Recommended air pressure: 6.2bar (90psi).

Air consumption: 4cfm* (113ltr/min).

Air inlet thread: 1/4” NPT.

Spindle thread: 3/8” - 24.

Minimum air hose size (ID):

3/8” (10mm).

Noise level†:

85dBA.

Sound power

level†: 96dBA.

Vibration level #: 0.4m/s2.

Overall length: 185mm.

†Per EN ISO 15744:2002.

#Per EN 28927-5.

DS4510L

10mm Jacobs chuck, stall-resistant, safety lever throttle,

high performance, planetary gearing, 3/8” - 24 spindle thread.

Air inlet thread: 1/4” NPT. Chuck capacity: 10mm.

Spindle thread: 3/8” - 24. Minimum air hose size (ID): 3/8” (10mm).

Air pressure: 90psi/6.3bar. Air consumption: 4cfm* (144ltr/min).

Noise level: 88dBA. Sound power level: 95dBA.

Vibration level: 2.5m/s2.

Overall length: 206mm.

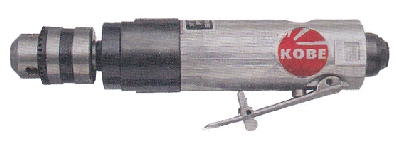

Kobe 10mm Straight Drill

DAR1510

10mm Jacobs chuck, fingertip control of reverse, reverse

exhaust, overall head height 94mm, 3/8”- 24 spindle thread.

Air inlet thread: 1/4” NPT. Chuck capacity: 10mm.

Minimum hose size: 3/8”(10mm).

Air pressure: 90psi/6.3bar.

Air consumption: 4cfm*

Kobe 10mm Reversible Angle Drill

B2834

Use for drilling and screwdriving. Two speed trigger (slow

speed when pushed halfway). Directional lever accessible from

both sides for left/right handed use. 10mm (3/8”) chuck included.

Planetary gears for longer life and smoother running.

Ergonomic comfortable grip.

Chuck size: 3/8” (10mm). Free speed: 1,800rpm.

Recommended air pressure: 6.2bar (90psi).

Air consumption: 4cfm* (113ltr/min).

Air inlet thread: 1/4” NPT.

Spindle thread: 3/8” - 24.

Minimum air hose size (ID):

3/8” (10mm).

Noise level†:

85dBA.

Sound power

level†: 96dBA.

Vibration level #: 0.4m/s2.

Overall length: 185mm.

†Per EN ISO 15744:2002.

#Per EN 28927-5.

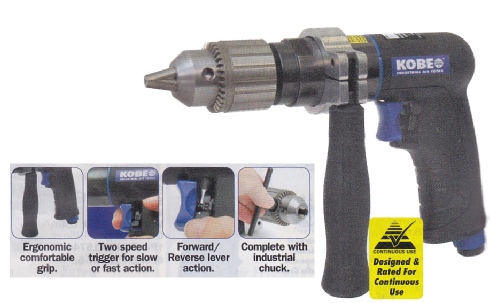

Kobe 10mm Reversible Pistol Grip Drill

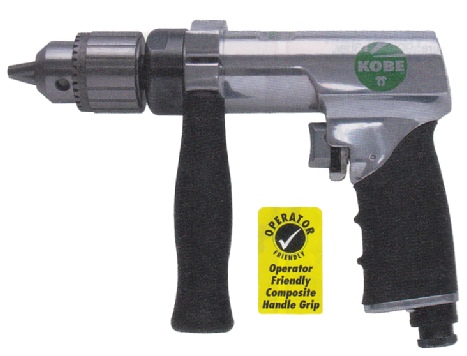

Kobe 13mm Reversible Pistol Drill

FPD500

Suitable for high torque drilling applications as well as screwdriving, hole sawing and cylinder honing.

Rubber handle provides grip and operator comfort. 1/2” chuck. Adjustable side handle. Short gear case

design. Heavy duty gearing system with oil-less bushing. Spring loaded rotor vanes. Rear exhaust.

Ball bearing construction for a long tool life.

Spindle thread: 3/8” - 24.

Air inlet thread: 1/4” NPT.

Minimum air hose size (ID): 3/8” (10mm).

Air pressure: 90psi/6.2bar.

Air consumption: 3.65cfm*.

Sound pressure level: 95dBA.

Sound power level: 100dBA.

Vibration level: 0.4m/s2.

Overall length: 240mm.

Ergonomic comfortable grip.

Two speed trigger for slow or fast action.

Forward/Reverse lever action.

Complete with industrial chuck.

*Based on a 15 second cycle per minute average use.

*Based on a 15 second cycle per minute average use.

B2842

Use for drilling and screwdriving. Two speed trigger (slow speed when pushed halfway). Directional lever accessible from both sides for left/right handed use. 13mm (1/2”) chuck

and detachable side handle included. Planetary gears for longer life and smoother running. Ergonomic comfortable grip.

Chuck size: 1/2” (13mm). Free speed: 800rpm.

Recommended air pressure: 6.2bar (90psi).

Air consumption: 4cfm* (113ltr/min).

Air inlet thread: 1/4” NPT.

Spindle thread: 3/8” - 24.

Minimum air hose

size (ID): 3/8” (10mm).

Noise level†: 86dBA.

Sound power level†: 93dBA.

Vibration level #: 0.4m/s2.

Overall length: 218mm.

†Per EN ISO 15744:2002.

#Per EN 28927-5.

Kobe 13mm Reversible Pistol Grip Drill

GA1011L

Adjustable safety guard, safety lever throttle. Supplied with auxiliary

side handle, flanges and spanners, lightweight and compact.

100 x 3 x 16mm cut-off disc.

Air inlet thread: 1/4” NPT.

Spindle thread: 3/8” - 24.

Minimum air hose size: 10mm (3/8”).

Air pressure: 6.3bar (90psi).

Air consumption: 6cfm* (216ltr/min).

Motor power: 0.7hp.

Sound pressure level: 89dBA.

Sound power level: 96dBA.

Vibration level: 4.0m/s2.

Overall length:230mm.

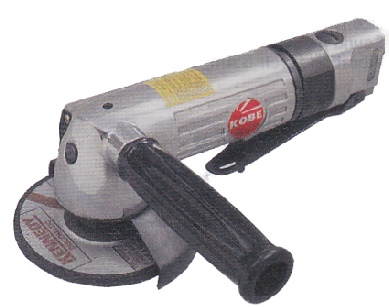

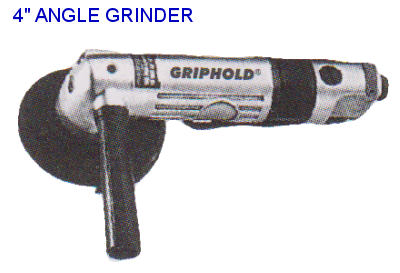

Kobe 100mm  Angle Grinder

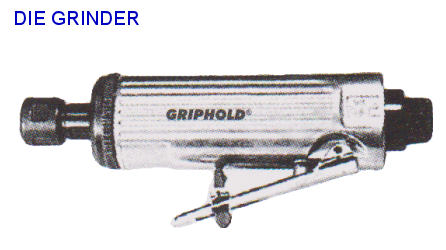

Kobe 100mm  Angle Grinder High Speed Mini Die Grinder

GD2806L

For precision engineers’ mould making etc. Safety lever throttle,

front exhaust, ultra compact and lightweight.

Collet size: 6mm. Air inlet thread: 1/4” NPT. Minimum air hose size

(ID): 10mm (3/8”). Air pressure: 90psi. Air consumption: 4cfm*.

Sound pressure level: 94dBA.

Sound power level: 103dBA.

Vibration level: 5.0m/s2.

Overall length: 120mm.

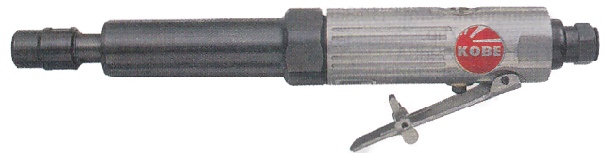

Kobe Extended Spindle Die Grinder

GES2506L

For extra reach in ‘hard to get at’ areas, extended spindle housing

allowing two-handed operation, rear exhaust, safety lever throttle.

Collet size: 6mm. Air inlet thread: 1/4” NPT.

Minimum air hose size (ID): 10mm (3/8”). Air pressure: 90psi.

Air consumption: 4cfm*.

Sound pressure level: 93dBA.

Sound power level: 103dBA.

Vibration level: 5.4m/s2.

Overall length: 248mm.

*Based on a 15 second

cycle per minute average use

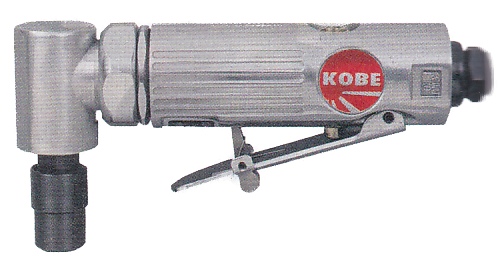

Kobe 90° Angle Die Grinder

GDA2206L

Safety lever throttle, reverse exhaust, Ideal for polishing, grinding and buffing, suitable for use in confined areas.

Free speed: 22,000rpm. Collet size: 6mm.

Air inlet thread: 1/4” NPT. Minimum air hose size: 10mm (3/8”).

Air pressure: 90psi/6.2bar. Air consumption: 4cfm*.

Sound pressure level: 85dBA.

Sound power level: 99dBA. Vibration level: 7.0m/s2.

Overall length: 160mm.

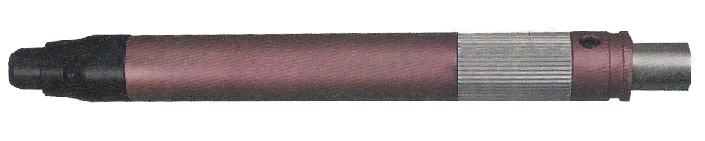

Micro Die Grinder

GM5603

For precision grinding etc. With hose and silencer, 1/4” NPT air inlet thread for 5mm air hose, 90psi air pressure, 7cfm* air consumption.

Collet size: 3mm. Free speed: 56,000rpm. Sound pressure level: 76dBA. Sound power level: N/A dBA. Vibration level: 4.80m/s2.

Overall length: 156mm.

RPP480

For blind rivets with 3/32”, 1/8”, 5/32” and 3/16” nozzles. Comes with a

plastic bottle to collect ejected pins.

Air inlet thread: 1/4” NPT.

Minimum air hose size:

10mm (3/8”).

Air consumption:

4cfm (113ltr/min)*.

Sound pressure

level: 50dBA.

Sound power

level: 61dBA.

Vibration level:

0.55m/s2.

Overall height:

274mm.

CSP005S

Heavy-duty reverse action pistol grip screwdriver suitable for production and assembly applications. Push to start type with auto shut-off clutch for precision applications. Three interchangeable torque springs allow for easy conversion for new applications. 1/4” hex drive. External torque adjustment does not require disassembly of the tool. Variable speed throttle. Ergonomically contoured grip for operator comfort.

Handle exhaust directs air away from the

workpiece and operator. Hanging ring included.

Chuck size: 1/4” (6mm) hex.

Air inlet thread: 1/4” NPT.

Minimum air hose size (ID): 3/8” (10mm).

Green torque spring:* 0.6 - 2.1Nm (5 - 19in/lbs).

Black torque spring: 1.1 - 4.3Nm (10 - 38in/lbs).

Yellow torque spring: 1.7 - 5.1Nm (15 - 45in/lbs).

Air pressure: 6.3bar/90psi.

Air consumption: 4cfm* (144ltr/min).

Sound pressure level: 84dBA.

Sound power level: 93dBA.

Vibration level: <0.5m/s2.

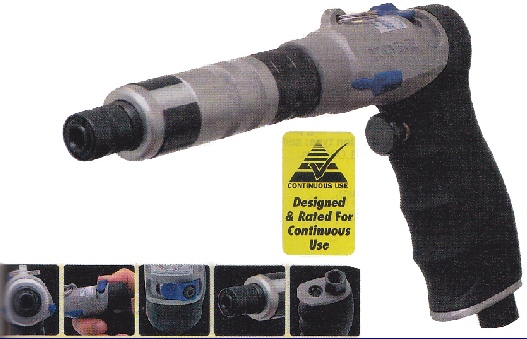

Automatic Shut-off Screwdriver 0.6 - 5.1Nm

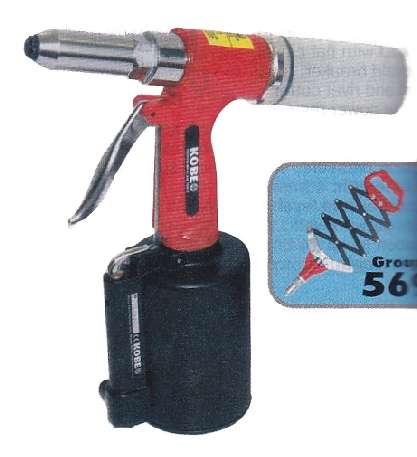

Kobe Air Riveter

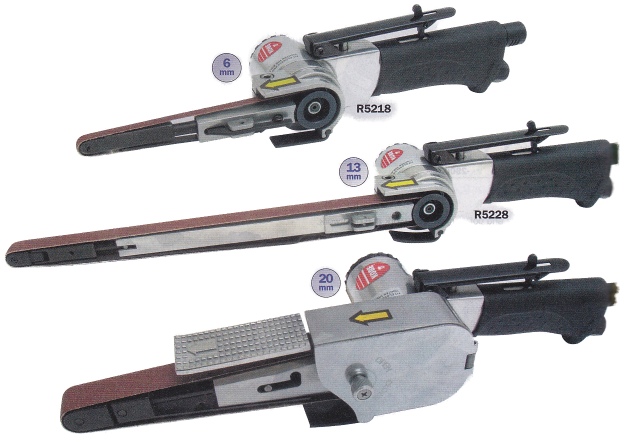

Mini Belt Sanders

Suitable for flat, concave and convex surfaces. Sanding arm can be rotated to any angle - improved access in confined spaces, saves space when storing the tool. Spare belt and hex wrench included. Ergonomic and comfortable rubber grip for reduced vibration.

Low profile teasing throttle for precise speed control. Directional rear exhaust.

Air inlet thread: 1/4” NPT

Minimum air hose size (ID): 10mm (3/8”).

Air consumption: 4cfm* (113ltr/min).

Air pressure: 90psi/6.2bar.

Overall length/folded length:

R5218: 305/207mm,

R5228: 470/310mm,

R5238: 420/255mm.

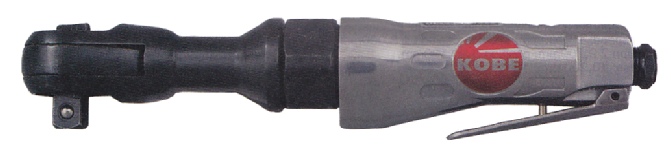

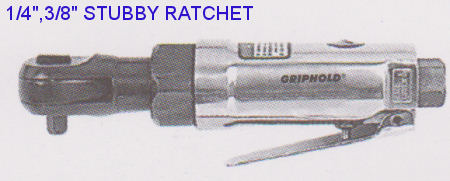

Kobe Speed Ratchets

SR375 3/8" square drive, 10mm bolt capacity.

SR500 1/2" square drive, 13mm bolt capacity.

Ball type retainer, disc type reversing action, compact, lightweight design, ideal for automotive work, front exhaust.

Free speed: 150rpm.

Air inlet thread: 1/4” NPT.

Minimum air hose

size (ID): 10mm (3/8”).

Air pressure: 6.2bar/90psi.

Air consumption:

4cfm* (113ltr/m).

Torque: 50ft/lbs.

Overall length: 255mm.

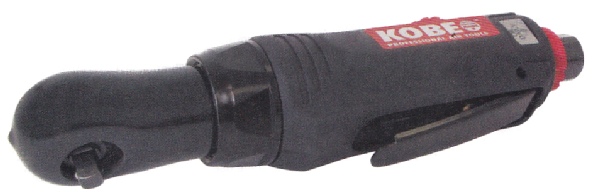

Kobe Speed Ratchet 1/4” Square Drive

R7722

Suitable for the removal and installation of threaded fasteners. Reversible hardened steel 1/4” square drive. Short body length allowing access into hard to reach areas. Planetary gears for longer life and smoother running. Low profile throttle for precise speed control. Rotating air inlet to prevent the air hose tangling.

Drive size: 1/4” (6mm).

Free speed: 200rpm.

Recommended air pressure: 6.2bar/90psi.

Air consumption: 4cfm* (113ltr/min).

Working torque range:

7 ~ 27nm (5 ~ 20ft/lbs).

Air inlet thread: 1/4” NPT.

Minimum air hose

size (ID): 10mm (3/8”).

Sound pressure level: 80dBA.

Sound power level: 88dBA.

Vibration level: 1.8m/s2.

Overall length: 200mm.

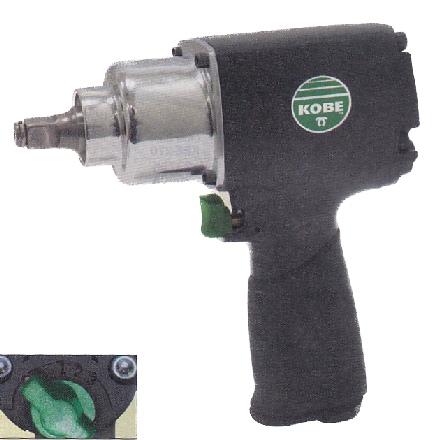

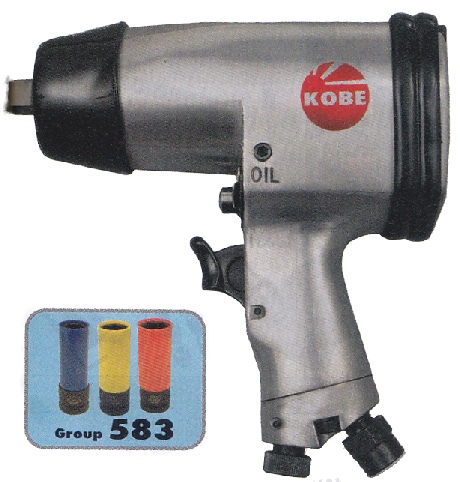

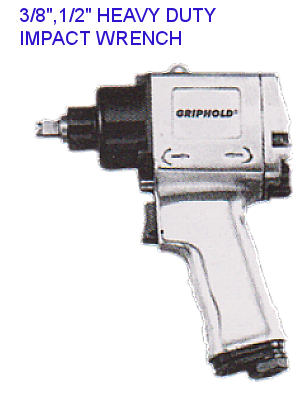

Kobe Impact Wrench 1

G7321

Suitable for light workshop and garage use. Twin hammer

mechanism with a 4-point adjustable air (speed) forward/

reverse speed regulator. Ergonomic and comfortable handle grip with

vibration dampening a fixed inlet and exhaust. One finger stop/start

trigger operation. Downward facing external exhaust in handle.

Free speed: 10,100rpm, forward: position 1 8,000rpm,

position 2 9,100rpm, position 3 10,100rpm,

reverse: 10,200rpm.

Maximum torque:

393Nm (290ft/lbs).

Working torque: 339Nm

(250ft/lbs).

Recommended air pressure:

6.2bar (90psi).

Air consumption: 3.4cfm*

Air inlet thread: 1/4” NPT.

Minimum air hose size (ID): 10mm (3/8”).

Overall length: 160mm.

B7444

Suitable for production and assembly applications.

Twin hammer mechanism. Three position dial style speed

regulator. Forward/reverse selection. Ergonomic and comfortable

handle grip. Fixed inlet and exhaust.

Forward: position 1: 4000rpm, position 2: 5000rpm,

position 3: 7000rpm.

Reverse: position 1: 3000rpm, position 2: 5000rpm,

position 3: 7000rpm.

Collet size: 1/2” (13mm).

Free speed: 7,000rpm.

Maximum torque:

813Nm (600ft/lbs).

Recommended air pressure:

6.2bar/90psi.

Air consumption: 4cfm*

(113ltr/min).

Air inlet thread: 1/4” NPT.

Minimum air hose size (ID): 10mm (3/8”).

Sound pressure level: 83dBA.

Sound power level: 90dBA.

Vibration level: 6.8m/s2.

Overall length: 183mm.

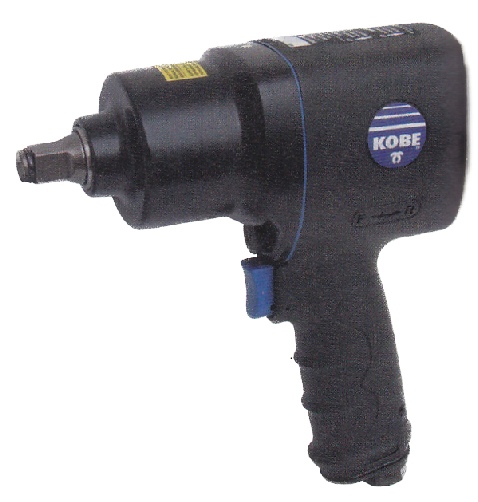

Kobe Impact Wrench 2

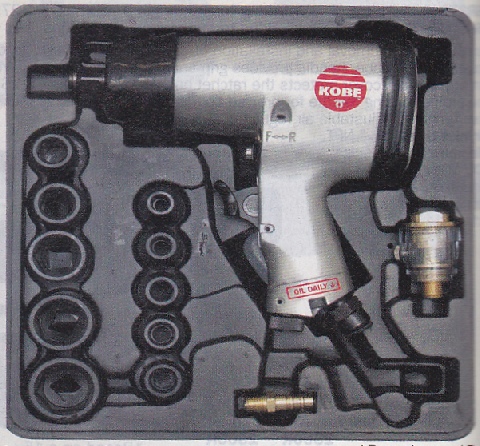

Kobe Impact Wrench Kit

IWS500

Kit supplied complete in robust blow-moulded case.

Includes: 1/2” impact wrench IW500. 10 metric sockets:

9 - 27mm. Threaded tailpiece, in-line mini-oiler and oil bottle.

One piece aluminium housing, 10 position power regulator, thumb

switch for reversing, 1/4” NPT air inlet thread for 10mm air hose,

90psi air pressure, 300ft/lbs torque, 4cfm* air consumption,

16mm bolt capacity.

Sound pressure level: 93dBA. Sound power level: N/A dBA.

Vibration level: 1.219m/s2. Overall length: 191mm.

Kobe Impact Wrench 3

IW750

One-piece aluminium housing, 10 position power regulator,

thumb switch for reversing, 1/4” NPT air inlet thread for 10mm

air hose, 25mm bolt capacity. 90psi air pressure,

7.5cfm* air consumption. 500ft/lbs torque.

Sound pressure level: 83dBA.

Sound power level: N/A dBA.

Vibration level: 0.449m/s2.

Overall length: 245mm.

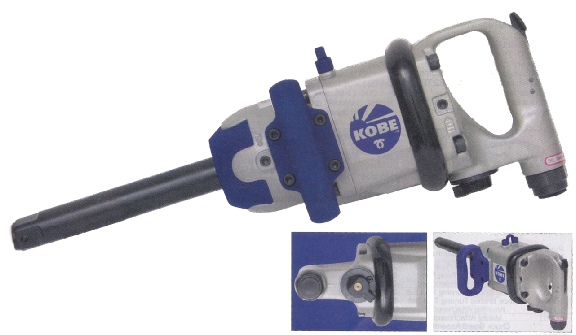

IWP100-X

Suitable for industrial and commercial production and

assembly applications. Front or rear mounting spring balance

loop. Forward/reverse switch and three position power regulator.

Forward facing exhaust. Oiling points for daily

maintenance.

Free speed: 3,400rpm.

Final drive: 1” (25mm) hex.

Working torque: 2,170Nm (1600lb/ft).

Maximum torque: 2,440Nm (1800lb/ft).

Air inlet thread: 1/2” NPT.

Minimum air hose size (ID): 1/2” (13mm).

Air pressure: 6.3bar/90psi.

Air consumption: 5.95cfm.

Sound pressure level: 87dBA.

Vibration level: 5.9m/s2.

Overall length: 295mm.

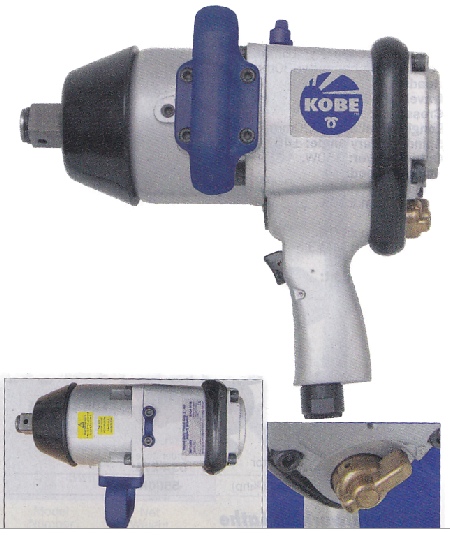

Pistol Grip Air Impact Wrench

1” square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop.

Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.

Free speed: 3,300rpm.

Final drive: 1” (25mm) hex.

Working torque: 2,030Nm (1500lb/ft).

Maximum torque: 2,300Nm (1700lb/ft).

Safe working pressure: 6.2bar/90psi.

Air inlet thread: 1/2” NPT.

Minimum air hose size (ID): 1/2” (13mm).

Air pressure: 6.3bar/90psi.

Air consumption: 7.0cfm.

Sound pressure level: 87dBA.

Vibration level: 5.9m/s2.

Overall length: 500mm.

Heavy Duty In-Line Air Impact Wrench

Impact Wrench Detailed Catalogue
